1.Versatile Gear Processing: Handles spur, helical, worm, and sprocket gears with ease.
2.High-Precision Indexing: Advanced worktable drive ensures accurate tooth spacing.

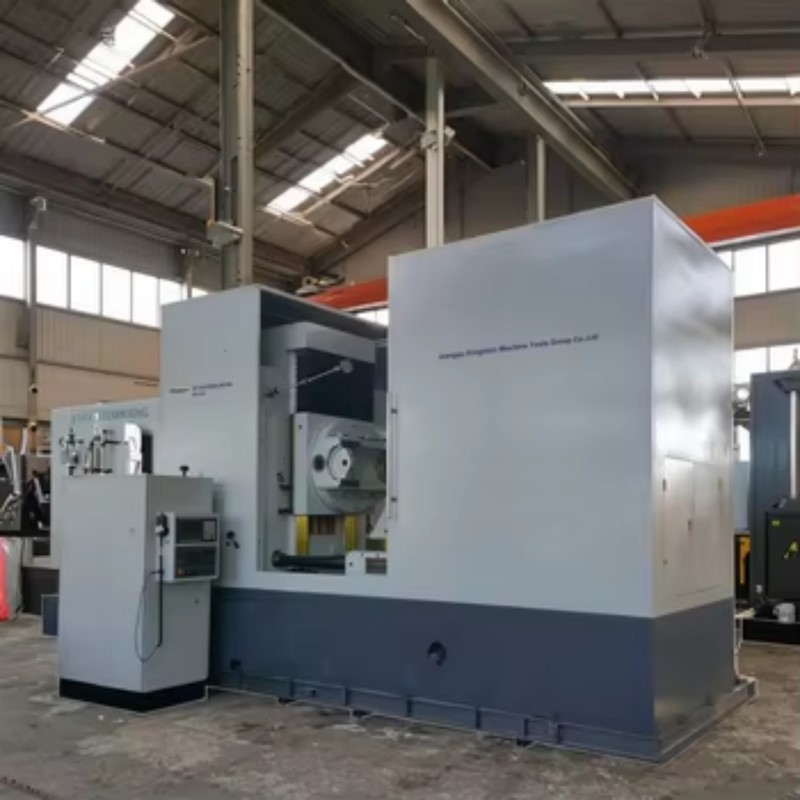

3.Tangential Feed Capability: Y-axis tangential feed enables precise hob positioning and shifting.
4.Robust Construction: Designed for continuous operation in demanding production environments.
5.User-Friendly Programming: Intuitive CNC interface simplifies setup and operation.
|
Description
|
Specifications
|
|
Max. workpiece dia.
|
800mm
|
|
Max. module
|
10mm
|
|
Hob head slide travel
|
400mm
|
|
Max. hob head swivel
|
±45rad
|
|
Max. hob dimensions （dia. × length）
|
200×240mm
|
|
Max. axial travel of the hob
|
200mm
|
|
Center distance between hob and worktable
|
45~405mm
|
|
Distance between hob center and worktable surface
|
280~680mm
|
|
Distance between workstay center and worktable surface
|
390~890mm
|
|
Max.Tooth width
|
200 mm
|
|
Table hole dia
|
120 mm
|
|
Spindle speed
|
80~500r/min
|
|
Max. worktable speed
|
50r/min
|
|
Max. radial feed speed (X-axis)
|
2600 mm/min
|
|
Max. tangential feed speed (Y-axis)
|
2000 mm/min
|
|
Axial feed speed（Z-axis）
|
2600 mm/min
|
|
Max. hob head rotary speed
|
5rad/s
|
|
Main motor power
|
18.5KW
|
|
Total power
|
50Kw/50Hz
|
|
Net weight
|
17000Kg(6 AXIS )/15000KG(4 AXIS)
|
|
Overall dimensions
|
42×39×37cm
|

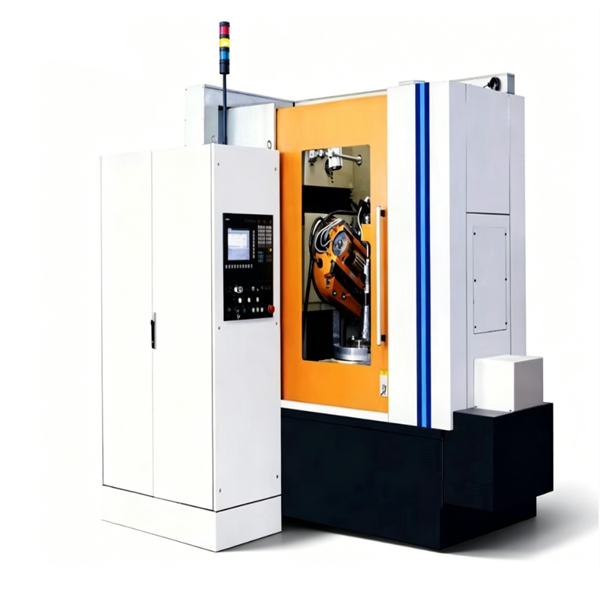

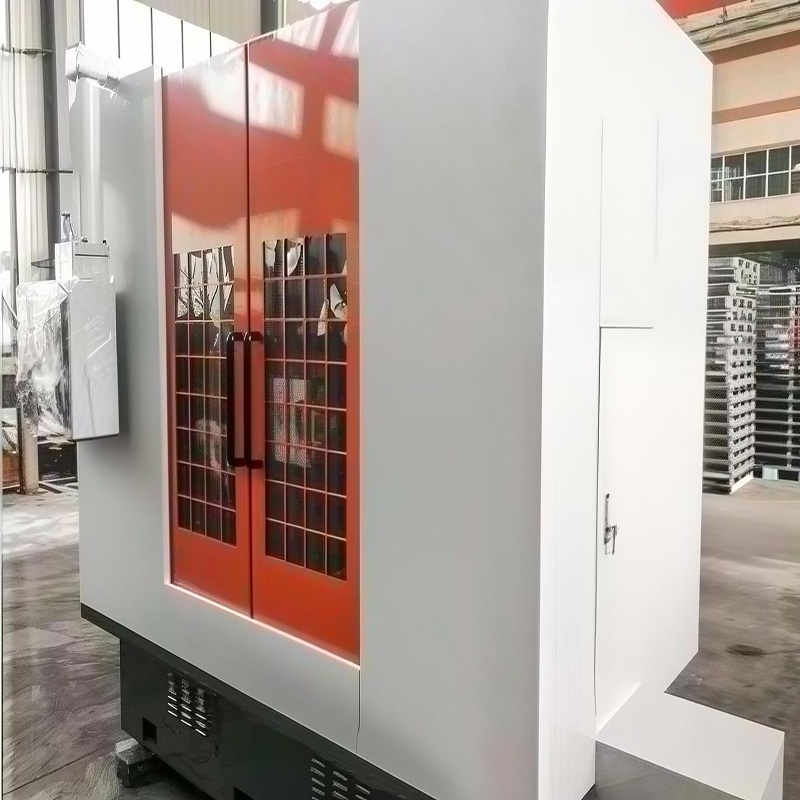

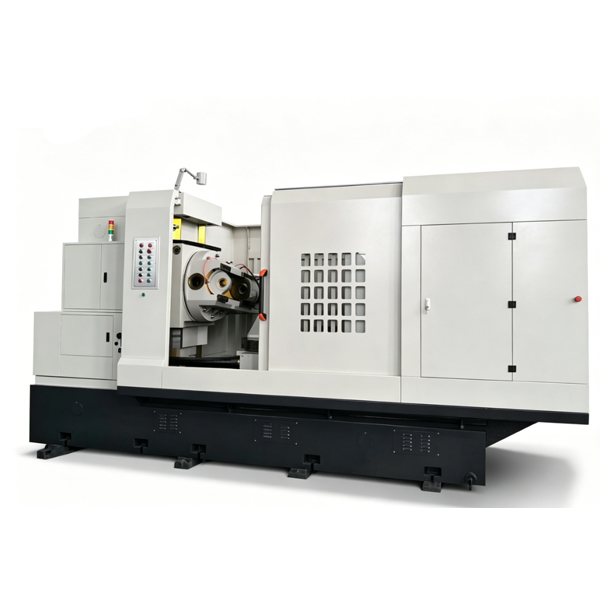

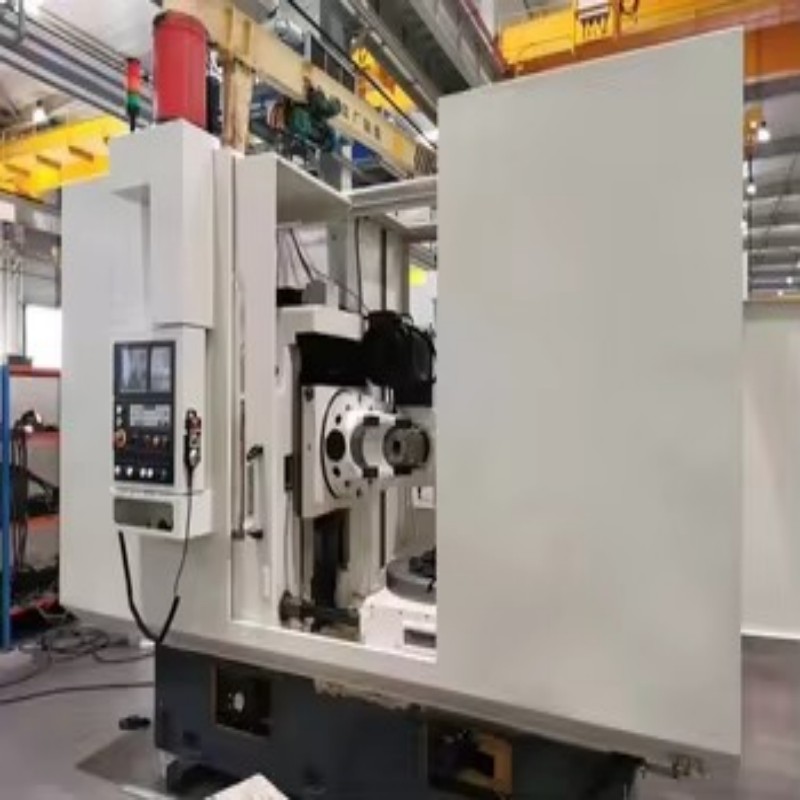

The YK3180E is a sophisticated 6-axis CNC gear hobbing machine engineered for high-precision gear production. With control axes including radial feed (X), tangential feed (Y), axial feed (Z), and tool post rotary (A) motion, this machine delivers exceptional flexibility for machining spur gears, helical gears, worm gears, and sprockets. The robust construction ensures stable operation and consistent accuracy, making it ideal for both batch production and single-piece manufacturing in automotive, aerospace, and industrial drivetrain applications
JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.
Community charging overall solution covers all application
-
Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
-
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
-
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.
Our certification
Authoritative Certifications, Stable and Reliable Quality.
factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed

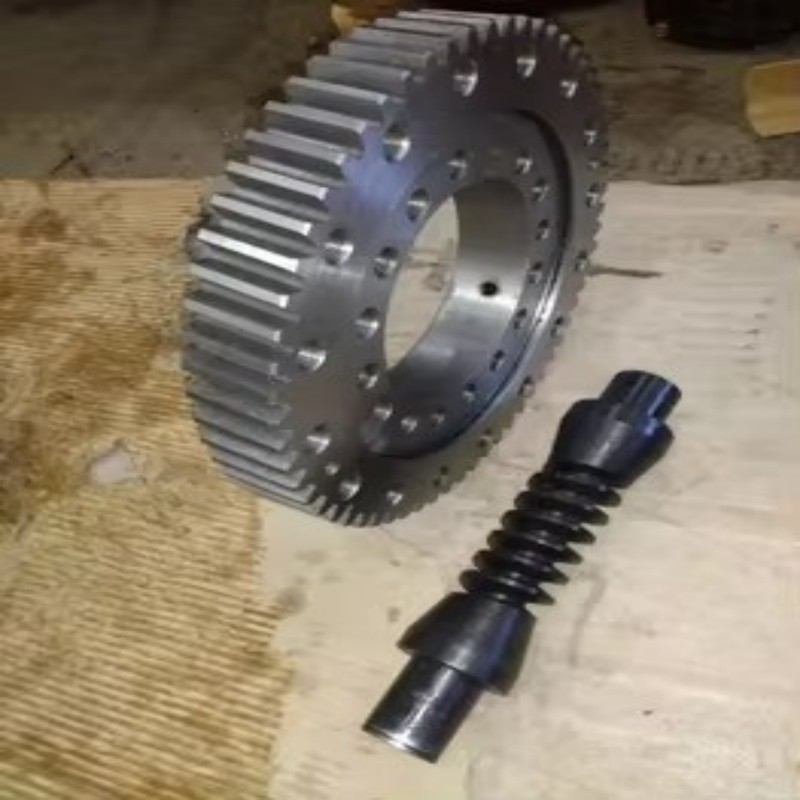

Q1: What types of gears can the YK3180E process?
A1: Spur gears, helical gears, worm gears, and sprockets.
Q2: What CNC axes are featured on this machine?
A2: Radial feed (X axis), tangential feed (Y axis), axial feed (Z axis), and tool post rotary (A axis).
Q3: Is this machine suitable for mass production?
A3: Yes, it is designed for both batch production and single-piece manufacturing.
Q4: What industries commonly use this machine?
A4: Automotive, aerospace, and industrial drivetrain manufacturing.
