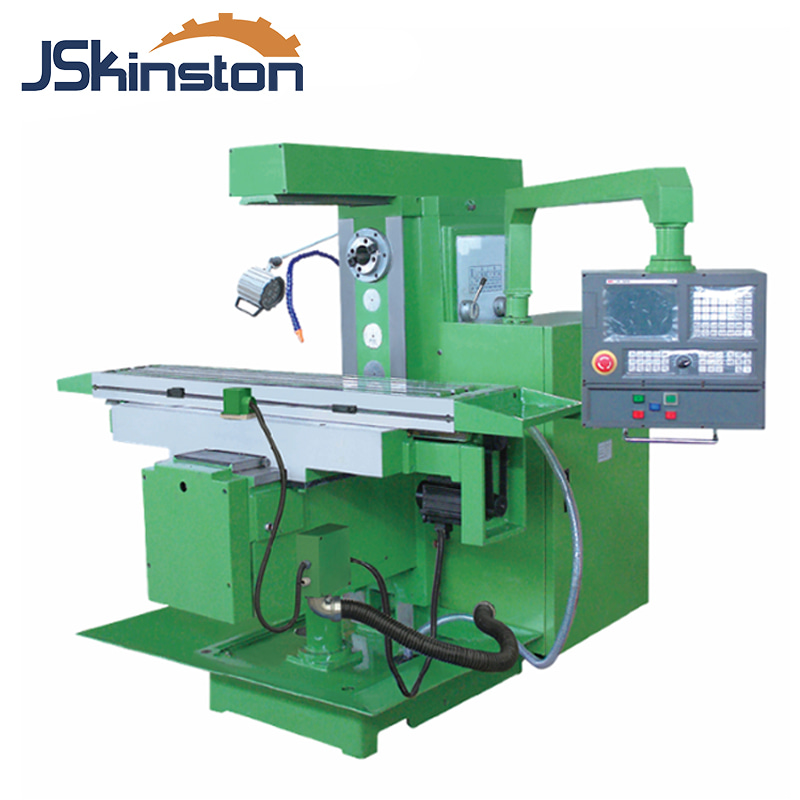

XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens

Name: XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens
Availability: InStock

XLK6036CL CNC horizontal milling machine adopts SIEMENS 808D system. It realizes automatic machining with high precision and high efficiency.The XLK6036CL is a CNC horizontal milling machine standard with Siemens 808D controller. Featuring a 1600×360 mm table and 5.5kW spindle, it brings automation to heavy horizontal milling tasks.

Минимальный объем заказа (MOQ) :
1
Происхождение продукта :
China
Цвет :
Customized
Порт отправки :
Qingdao
Время выполнения :
30
Масса :
2510Kg

Запросить информацию сейчас

CNC Horizontal Knee-Type Milling Machine with High Precision

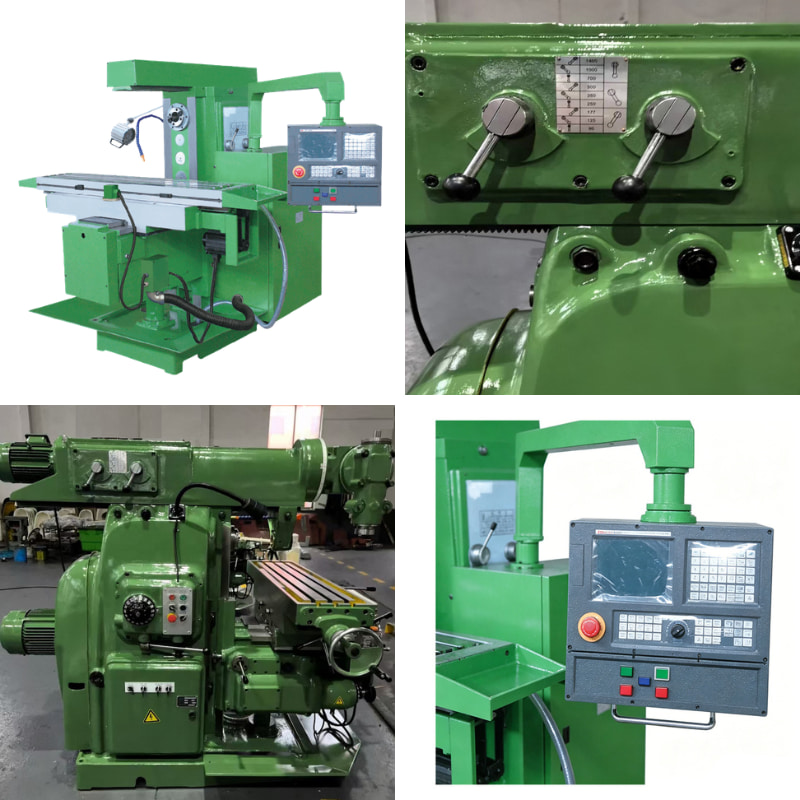

Extended Travel Universal Milling Machine

1.Siemens 808D system: graphical programming, supports ISO code, features a USB interface, and is easy to learn.

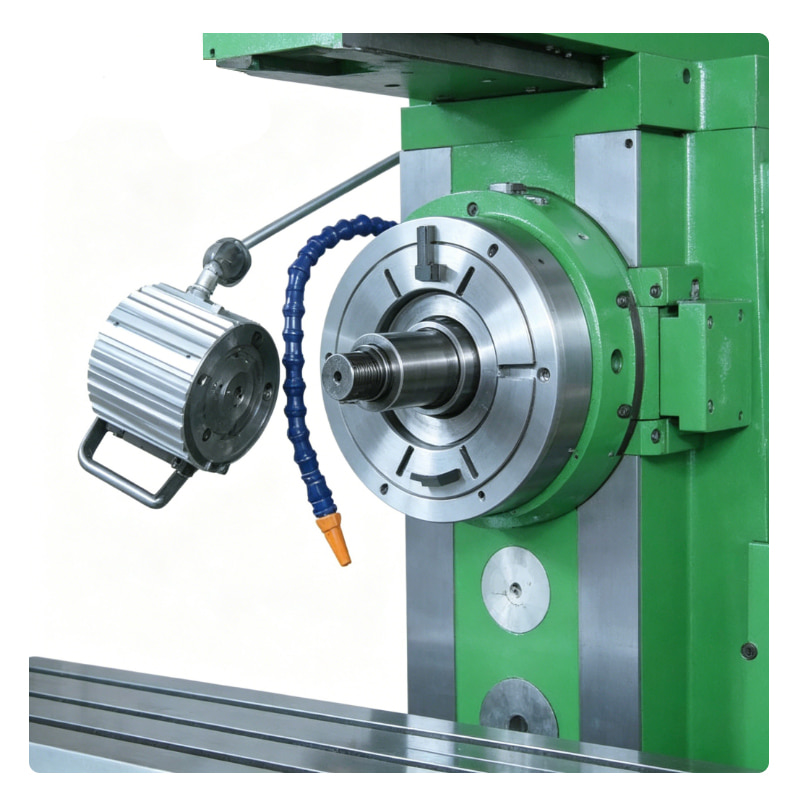

2.High-rigidity horizontal structure: Horizontally mounted spindle, suitable for heavy-duty cutting; tool holder ensures stability for long tool holders.

3.Servo drive: Servo motors on all X, Y and Z axes, with rapid traverse speeds of 4000/4000/3000 mm/min.

4.Compatible with multiple systems: Optional FANUC, Mitsubishi or GSK980MDC systems available to suit different user preferences.

specification

Specification	Unit	XLK6036C	XLK6036CL
Spindle hole taper	一	7:24 ISO50
Distance between spindle and table surface	mm	10-460
Distance from spindle axis to arm	mm	175
Spindle speed range	r/min	12steps 60-1800
Arm travel	mm	500

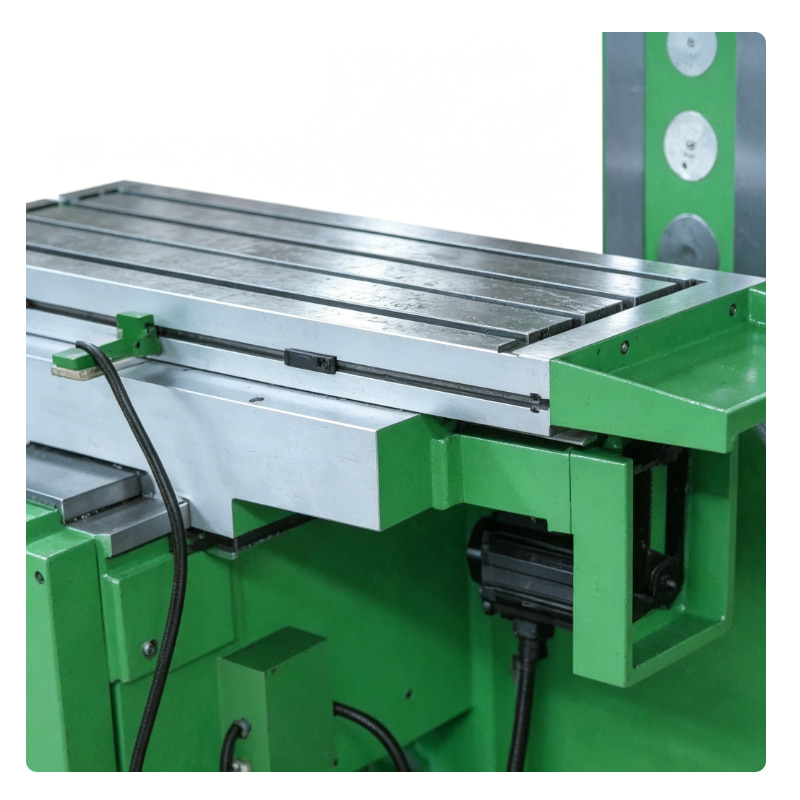

Table size	mm	1325×360	1600×360
Table travel(XY/Z)	mm	1100/320/450	1300/320/450
Table rapid feed speed	mm/min	4000/4000/3000
T-slot(No./width/pitch)	mm	3/18/70
Main motor power	kw	5.5
Torque of×/Y/Zaxis AC servo motor	N.m	10/10/18
Overall size(LxW×H)	mm	2400×2000×1870	28C0×200Dx1870
Net weight	kg	2465	2510

Product Advantages

Siemens 808D CNC System
Graphical programming, ISO code support, USB interface – easy to learn, ideal for transition from manual to CNC.
4th Axis Ready
Reserved interface – add CNC rotary table for 4-axis simultaneous machining of spiral grooves, cams, etc.
High-Speed Rapid Traverse
XYZ rapids 4000/4000/3000 mm/min – greatly reduces auxiliary time, improves productivity.
Compatible with Multiple CNC Systems
Optional FANUC, Mitsubishi, GSK980MDC – adapts to different user preferences.
Horizontal Structure for Heavy Cutting
Horizontal spindle with arbor support – suitable for heavy cuts, arbor stability better than vertical.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.
