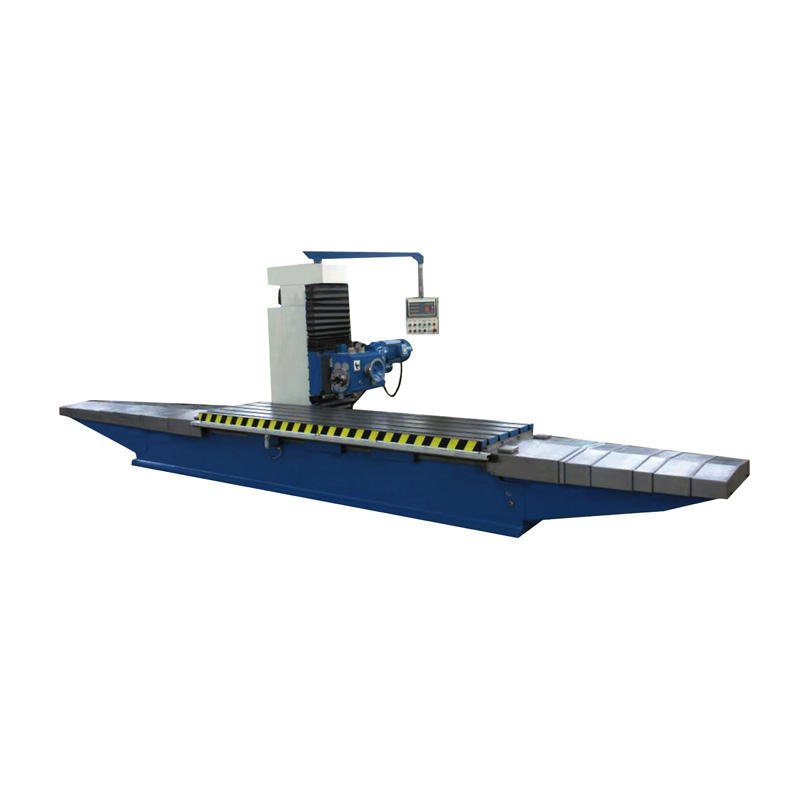

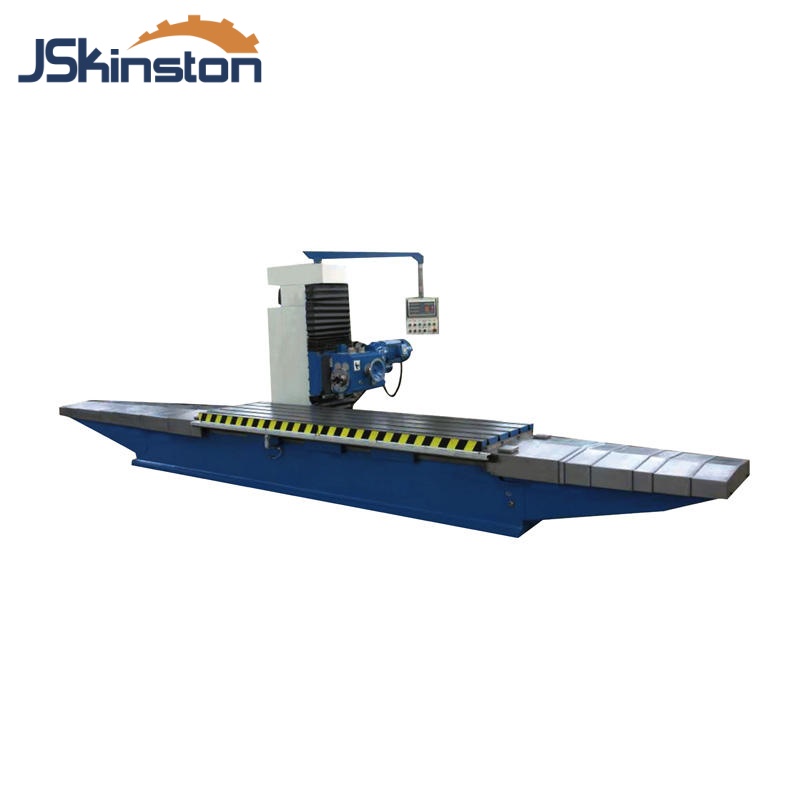

Heavy Duty High Precision XH1506/08 Single-coloumn Horizontal Milling Machine

Gantry-type Single Column Milling Machine

Heavy Duty High Precision XH1506/08 Single-coloumn Horizontal Milling Machine

The XH1506/08 is a heavy-duty, high-precision single-column horizontal milling machine designed for large-scale industrial machining. It delivers exceptional rigidity and accuracy for processing heavy workpieces in sectors like aerospace, automotive, energy, and heavy equipment manufacturing.

Минимальный объем заказа (MOQ) :
1
Происхождение продукта :
China
Цвет :
Customized
Порт отправки :
Qingdao
Время выполнения :
30
Масса :
2000Kg

Запросить информацию сейчас

XH1506/08 Single-coloumn Horizontal Milling Machine

1. Box-Type Slideways – Extra-wide box-type guideways provide superior load distribution and stability during heavy intermittent cutting.

2. Three-Axis Hardened Ways – All three axes feature induction-hardened and precision-ground slideways, ensuring long-term geometric accuracy and wear resistance.

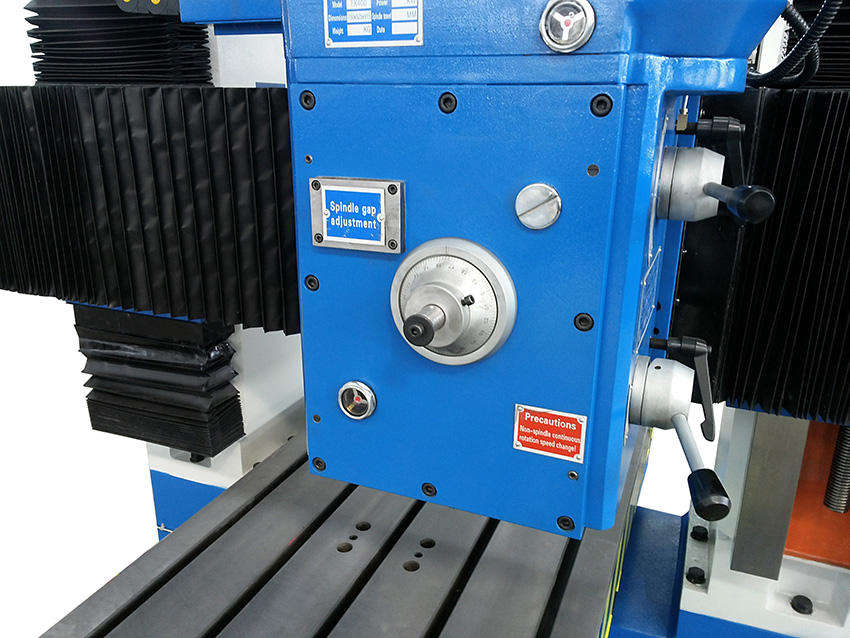

3. High-Rigidity Spindle Assembly – Precision angular contact bearings and optimized spindle geometry minimize thermal deformation for consistent accuracy over long runs.

4. Powerful Chip Evacuation System – Integrated screw-type chip conveyor automatically removes heavy chips, preventing accumulation and reducing manual cleaning downtime.

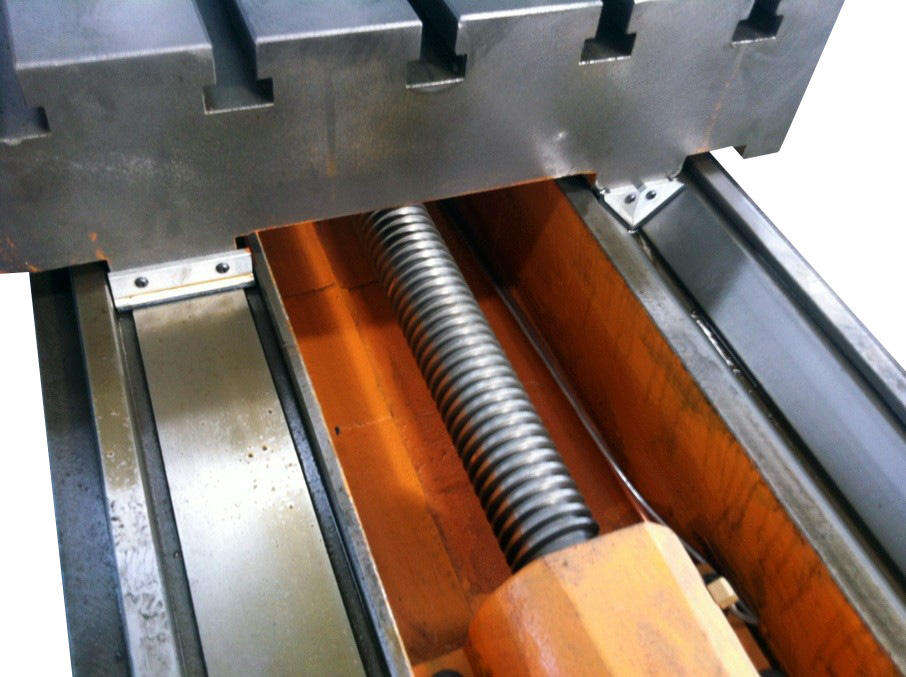

5. Heavy-Duty Ball Screws – Pre-tensioned precision ball screws on all axes eliminate backlash and ensure high positioning accuracy for demanding applications.

6. Wide Column Base – Extra-wide column base with multiple anchor points distributes cutting forces evenly, enhancing overall machine stability during heavy cuts.

7. Optional 4th Axis Rotary Table – Expandable with a CNC rotary table for complex 4-axis machining of turbine blades, camshafts, and intricate components.

8. Enclosed Safety Guarding – Full splash and chip guarding with interlocked safety doors protect operators while allowing clear visibility of the machining process.

specification


Specification			Unit	X1506	X1508
Distance between spindle and table surface			mm	0-750/1000
Table travel			mm	1500/2000/2500/3000
Table size		Length	mm	1500/2000/2500/3000
		Width	mm	630	800
		No. of T-Slots		5
		Width of T-slots	mm	22
Table feeding speed	Feed		mm/min	Infinite variable
	Rapid travel		mm/min	1400
Spindle taper				7:24 ISO50
(6 speeds) Spindle speed step			r/min	82-505
Spindle swivel angle				±35°
Vertical travel speed of milling head				Infinite variable
Stroke of milling head			mm	350
Power of spindle motor			Kw	7.5
Power of milling head feed motor			Kw	0.4
Power of table motor			Kw	2.2(1500)/3(2000.2500)/4
Max. workpiece weight			Kg	1500/1500/2000/2000

Product Advantages

Heavy-Duty Single-Column Construction
Massive cast iron structure provides exceptional rigidity and vibration damping for heavy cutting.
High-Precision BT50 Spindle
Delivers high torque and accuracy for machining hard materials like steel, titanium, and cast iron.
Wide Speed Range (20-3000 rpm)
Low-speed high-torque for roughing; high-speed for precision finishing.
Large Work Envelope
Extended table and travel handle large, heavy workpieces in one setup.

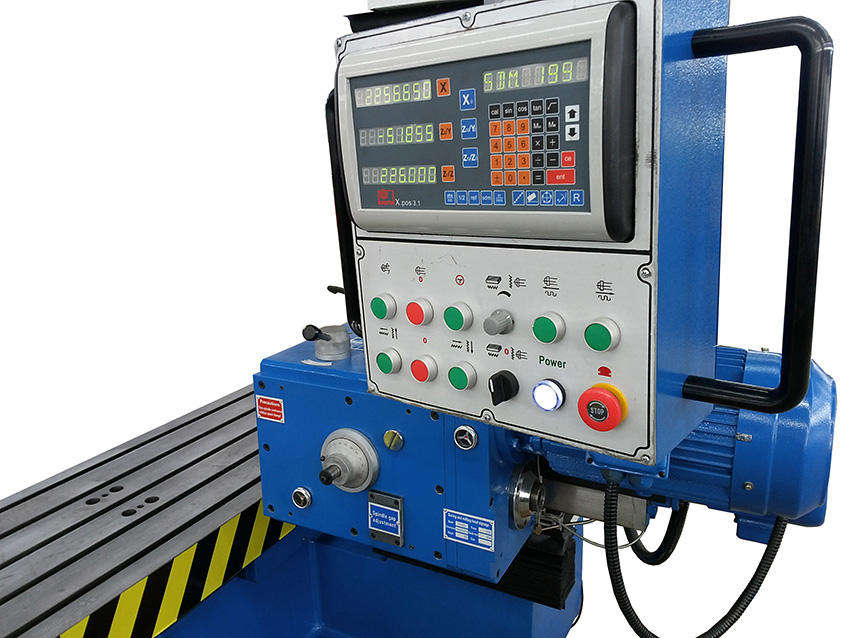

Optional CNC Control
Available with Fanuc, Siemens, or other CNC systems for automated precision.
